C – Shaped Steel Fixture P – Type Clamp.
It is a commonly used connector in systems such as seismic bracing systems and photovoltaic support systems.
It plays a crucial role in fixing pipes, cables, and other components, especially in scenarios where C – shaped steel is installed.

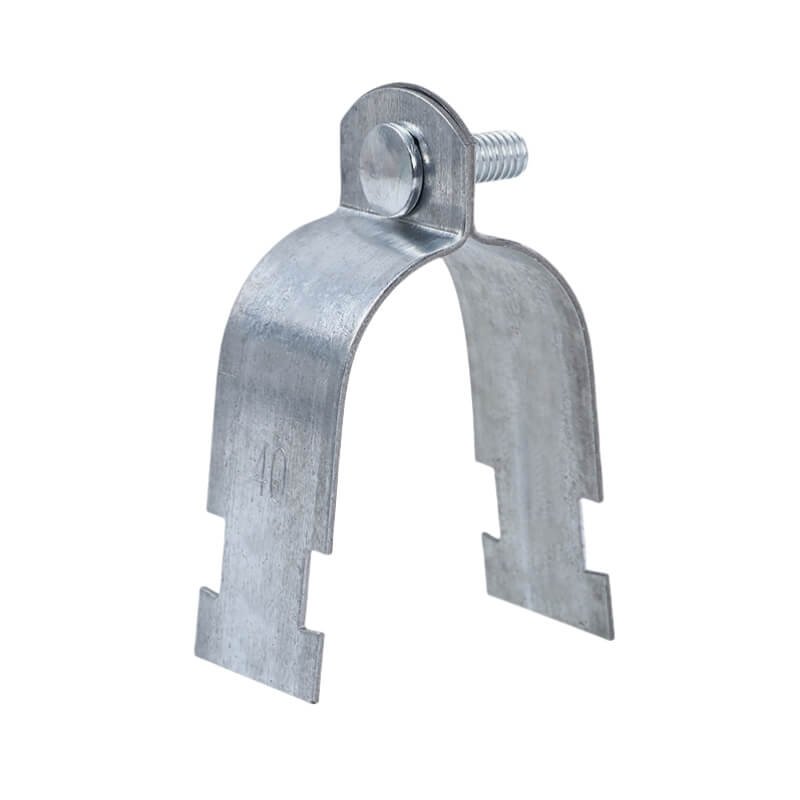

C – Shaped Steel Fixture P – Type Clamp has a distinctive shape. It consists of a curved body that can fit snugly with the C – shaped steel (usually in specifications such as 41×41, 41×21).
At the top, there is a bolt and a nut structure. The curved part of the clamp is designed to match the contour of the C – shaped steel,
and the notches on both sides are used to engage with the of the C – shaped steel, ensuring a firm connection.
Typically, it is made of galvanized steel. Galvanized steel has excellent corrosion – resistance properties. The galvanized layer forms a protective film on the surface of the steel,
which can effectively prevent the intrusion of moisture, oxygen, and other corrosive substances in the environment.
This ensures that the P – type clamp can be used for a long time in building mechanical and electrical environments,
such as in humid basements, outdoor photovoltaic power generation fields, etc.
There are also options of stainless steel materials for more demanding environments,
such as areas with high salinity or strong chemical corrosion, to further enhance the service life and stability of the product.
The P – type clamp utilizes the opening to engage with the C – shaped steel. When installed, the curved part of the clamp is placed on the C – shaped steel,
and then the notches on both sides are aligned with the C – shaped steel. After that, the bolt at the top is tightened.
As the bolt is tightened, the clamp is firmly fixed on the C – shaped steel, and at the same time,it can clamp and fix pipes, cables, etc. passing through the clamp.
This mechanical engagement and bolt tightening method ensure that the pipes and cables are stably fixed on the C – shaped steel, preventing displacement and vibration.
In modern building construction, seismic bracing systems are essential to enhance the seismic performance of buildings. The P – type clamp is an important component in these systems.
It is used to fix various pipelines in buildings, such as fire – fighting pipelines, heating pipelines, and water supply and drainage pipelines.
In the event of an earthquake, the seismic bracing system can effectively reduce the sway and displacement of pipelines, preventing pipeline rupture and leakage,
and ensuring the normal operation of building functions and the safety of personnel.
For example, in a high – rise building, the fire – fighting pipeline system fixed by P – type clamps can still maintain integrity during an earthquake,
ensuring that fire – fighting water can be supplied in a timely manner when needed.
With the rapid development of the photovoltaic industry, photovoltaic power generation systems are widely installed in various places,
such as industrial and commercial rooftops, ground photovoltaic power plants, etc. In these systems, C – shaped steel is often used as a support structure.
The P – type clamp is used to fix the photovoltaic cables and some small – diameter pipelines (such as pipelines for cooling the photovoltaic system).
It can ensure that the cables are neatly arranged and fixed, preventing the cables from being damaged due to wind vibration, sunlight exposure,
and other factors, and improving the overall stability and service life of the photovoltaic power generation system.
In building electrical engineering, a large number of cables need to be laid.
The P – type clamp can be used to fix these cables on the C – shaped steel of the building’s ceiling or wall.
This not only makes the cable layout more standardized and beautiful but also helps to maintain the safe distance between cables,
prevent cable entanglement and interference, and facilitate later maintenance and inspection.
For example, in a large – scale commercial building, the electrical cables in the ceiling can be neatly fixed on the C – shaped steel with P – type clamps,
making the entire electrical system more organized.
The P – type clamp is specifically designed for C – shaped steel. It can be perfectly matched with common C – shaped steel specifications in the market.
Whether it is the common 41×41, 41×21, or other non – standard C – shaped steel sizes, it can be well – adapted through appropriate adjustments.
This high compatibility makes it a universal accessory in C – shaped steel installation systems,
reducing the trouble of finding special – purpose connectors for different C – shaped steel specifications.
The installation process of the P – type clamp is relatively simple and flexible.
Workers only need to align the clamp with the C – shaped steel, engage the notches, and then tighten the bolts.
There is no need for complex tools or techniques. This not only saves installation time but also reduces labor costs.
In addition, during the installation process, the tightness of the bolt can be adjusted according to actual needs to ensure the best fixing effect.
For example, when fixing different diameters of pipes, the appropriate tightness can be adjusted to prevent over – tightening or under – tightening.
Once installed correctly, the P – type clamp can provide a strong fixing force.
The combination of the mechanical engagement of the notches and the bolt tightening can firmly fix the pipes and cables on the C – shaped steel.
It can effectively resist external forces such as vibration, wind load, and the weight of the pipes themselves.
In seismic bracing systems, this strong fixing ability can ensure that the pipelines do not fall off or shift during an earthquake,
thereby protecting the safety of the building and personnel.
Due to the use of high – quality galvanized steel or stainless steel materials, the P – type clamp has good long – term stability.
It can resist the corrosion of the external environment for a long time, and there is no obvious deformation or damage.
This ensures that the fixing effect of the clamp will not be reduced due to the aging of the product itself during the long – term use process,
reducing the frequency of maintenance and replacement, and saving costs for users.
When selecting a P – type clamp, the following factors need to be considered:
- C – Shaped Steel Specification: First, determine the specification of the C – shaped steel used in the project, such as the cross – sectional size, thickness, etc.
- Ensure that the selected P – type clamp can be compatible with it.
- Fixed Object: Consider the type and size of the object to be fixed, such as the diameter of the pipe, the number of cables, etc.
- Different sizes of P – type clamps are suitable for different diameters of pipes or cable bundles.
- Environmental Conditions: If it is used in a harsh environment, such as a coastal area with high salinity or a chemical plant with strong corrosion,
- it is necessary to choose a P – type clamp made of stainless steel or other high – corrosion – resistance materials.
- Correct Alignment: During installation, ensure that the notches of the P – type clamp are correctly aligned with the C – shaped steel.
- Incorrect alignment may lead to unstable fixing or damage to the clamp and C – shaped steel.
- Bolt Tightening: The bolts should be tightened to an appropriate degree. Too loose will result in insufficient fixing force,
- and too tight may cause damage to the clamp or the fixed object. It is recommended to use a torque wrench to control the tightening torque within a reasonable range.
- Regular Inspection: After installation, regular inspections should be carried out.
- Check whether the clamp is loose, whether the galvanized layer is damaged, etc.
- Timely discovery and solution of problems can ensure the long – term stable operation of the entire system.
With the continuous development of the construction industry, especially the increasing attention to building safety
(such as the popularization of seismic bracing systems) and the rapid expansion of the photovoltaic industry,
the market demand for P – type clamps is showing a continuous growth trend.
In the building construction industry, in order to meet the requirements of building codes and improve building safety performance,
more and more projects are using seismic bracing systems, which directly drives the demand for P – type clamps.
In the photovoltaic industry, as the scale of photovoltaic power plants continues to expand,
the demand for various support and fixing accessories, including P – type clamps, is also increasing.
In the market of P – type clamps, there are a large number of manufacturers, including some large – scale building materials enterprises and specialized accessory manufacturers.
The competition is mainly focused on product quality, price, and brand.
In terms of product development trends, on the one hand, there is a trend towards more precise manufacturing to improve the compatibility and fixing performance of the clamps.
On the other hand, with the increasing awareness of environmental protection,
the development of more environmentally friendly and high – performance materials for P – type clamps is also an important direction.
For example, the development of new galvanizing processes with less environmental pollution
or the application of new alloy materials to further improve the corrosion – resistance performance.
C – Shaped Steel Fixture P – Type Clamp is a very important accessory in the fields of building construction and photovoltaic power generation.
Its unique design, excellent material performance, and strong fixing ability make it an indispensable part of C – shaped steel installation systems.
With the continuous development of related industries, its market demand will continue to grow, and at the same time,
the product itself will also be continuously improved and upgraded to meet higher – level application requirements.
Whether in terms of ensuring building safety, improving the efficiency of photovoltaic power generation systems, or in terms of facilitating building electrical wiring,
the P – type clamp plays an irreplaceable role, contributing to the stable operation and development of various engineering projects.
