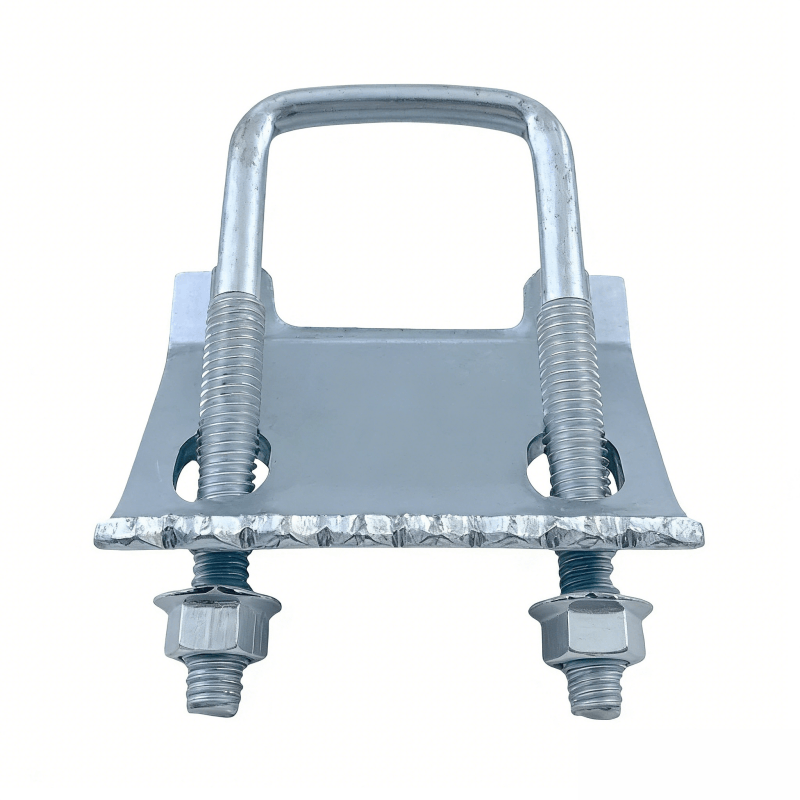

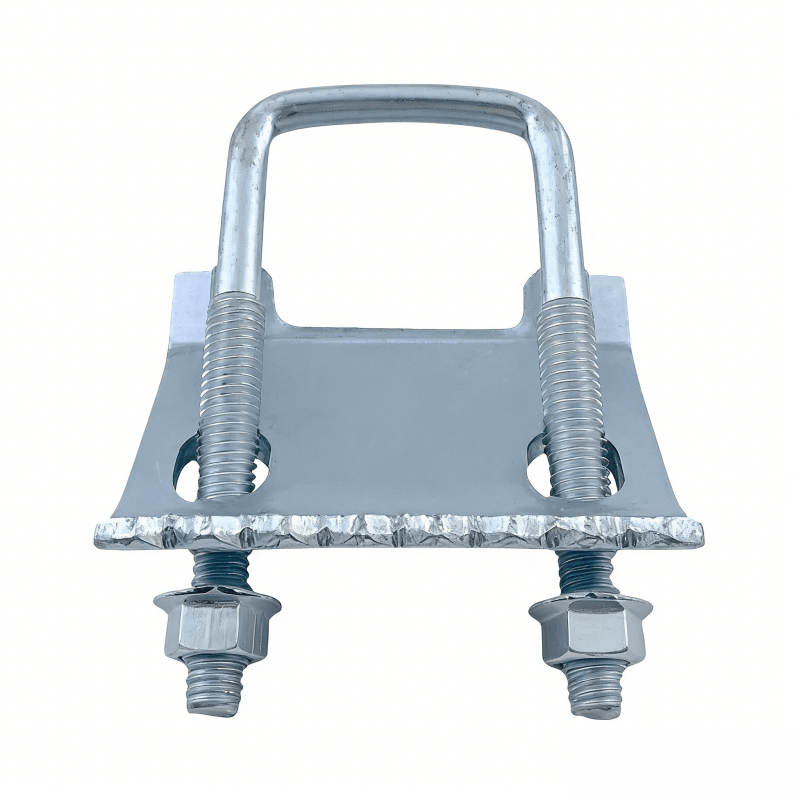

Serrated Edge (Dog Tooth) U-Bolt Bracket

This serrated edge (dog tooth) U-bolt bracket is a heavy-duty, anti-slip mounting solution crafted from galvanized steel. Designed to securely clamp pipes and round structures, its unique serrated plate prevents slippage in high-vibration industrial, mining, and construction environments, offering long-lasting corrosion resistance and easy installation.

Engineered for maximum stability, our dog tooth serrated U-bolt bracket delivers reliable anti-slip performance. The galvanized steel build resists rust and wear, while the serrated mounting plate locks into surfaces to eliminate movement—perfect for securing pipes, conduits, and equipment in harsh, high-vibration settings.ng-lasting corrosion resistance and easy installation.

1. Unmatched Anti-Slip Grip with Serrated Edge

Serrated Edge (Dog Tooth) U-Bolt Bracket ,The serrated (dog tooth) edge on the mounting plate creates a mechanical lock against surfaces, preventing slippage even under heavy vibration or lateral loads. Unlike smooth-surfaced brackets, this design eliminates the need for additional adhesives or washers, ensuring long-term stability in industrial and outdoor settings.

2. Robust Galvanized Steel Construction

Crafted from hot-dip galvanized steel, this U-bolt bracket offers superior corrosion resistance and tensile strength. It outperforms painted or zinc-plated alternatives, withstanding harsh weather, chemical exposure, and heavy use—making it ideal for long-term infrastructure projects.

3. Versatile Dual-Function Design

The U-bolt securely clamps pipes, conduits, or round structures, while the serrated mounting plate anchors to beams, walls, or frames. This dual functionality reduces the need for multiple hardware components, streamlining inventory and installation for engineers and contractors.

Serrated Edge (Dog Tooth) U-Bolt Bracket Product Core Information

Parameter	Details
Product Name	Serrated Edge (Dog Tooth) U-Bolt Bracket
Material	Hot-dip Galvanized Carbon Steel (standard), Stainless Steel 304/316 (optional)
Finish	Galvanized (corrosion-resistant), Polished (stainless steel option)
Bracket Type	Serrated Edge (Dog Tooth) Mounting Plate with U-Bolt Clamp
U-Bolt Size	Customizable diameters (fits 1/2″ to 6″ pipes, per specification)
Mounting Holes	Pre-drilled for standard M8/M10 fasteners
Load Capacity	Heavy-duty (rated for industrial structural loads)

Applicable Industries & Scenarios

Construction & Infrastructure: Pipe mounting for plumbing, electrical conduits, and structural steel
Mining & Heavy Machinery: Securing hydraulic lines and cables on vibrating equipment
Marine & Offshore: Deck pipe clamping (stainless steel option for saltwater resistance)
Agriculture & Irrigation: Outdoor pipeline anchoring in high-vibration environments
Transportation: Securing pipes and hoses on trucks, trailers, and railcars

Core Functions & Highlights

Anti-Slip Mounting: Serrated edge creates a non-slip interface to prevent bracket movement
Secure Pipe Clamping: U-bolt design firmly holds round objects without damaging surfaces
Corrosion Resistance: Galvanized finish protects against rust and environmental degradation
Easy Installation: Pre-drilled holes and included hardware reduce on-site labor time
Customizable Sizing: Available in various U-bolt diameters and plate dimensions to fit project needs

Competitive Differentiators

Serrated Edge Design: Unique dog tooth profile vs. standard smooth mounting plates
Material Durability: Hot-dip galvanized steel vs. thin-gauge mild steel or low-grade alloys
Load-Bearing Performance: Higher vibration resistance compared to non-serrated alternatives
Versatility: Single solution for both pipe clamping and structural mounting

Use Cases & Installation Guide

Real-World Use Case Example

Imagine you’re a mining engineer tasked with securing hydraulic pipes to heavy machinery. Constant vibration causes standard brackets to slip, leading to costly downtime. This serrated edge U-bolt bracket solves the problem:

The dog tooth edge locks into the machine’s frame, eliminating slippage during operation.
The galvanized steel resists corrosion from mine dust and moisture, extending service life.
The U-bolt securely clamps the hydraulic pipe, preventing leaks or disconnections.

Step-by-Step Installation

Position the Bracket: Align the serrated mounting plate with your target surface (beam, frame, or wall).
Secure the Plate: Insert bolts through the pre-drilled holes and tighten to create a firm anti-slip connection.
Attach the Pipe: Place your pipe/conduit into the U-bolt, then thread the U-bolt through the mounting plate.
Tighten Nuts: Hand-tighten the nuts on the U-bolt, then use a wrench to apply final torque (avoid over-tightening to prevent pipe damage).
Final Inspection: Verify the assembly is stable and free of movement before activating your system.

Why Choose Our Serrated Edge U-Bolt Bracket?

For projects where vibration resistance and long-term reliability are critical, this bracket delivers unmatched performance. Backed by rigorous quality testing and customizable options, it’s the trusted choice for industrial professionals worldwide.

Contact us today to request a custom quote or sample for your specific application.
