In industrial, marine, and construction applications, secure fastening and lifting solutions are critical.
Stainless steel U-bolts with brackets combined with eye bolts create a robust,
corrosion-resistant system for mounting, rigging, and structural support.
In industrial, marine, and construction applications, secure fastening and lifting solutions are critical. Stainless steel U-bolts with brackets combined with eye bolts create a robust, corrosion-resistant system for mounting, rigging, and structural support.
This in-depth guide covers:
✔ What are stainless steel U-bolts with brackets and eye bolts?
✔ How do they work together?
✔ Key benefits of this combination
✔ Top industrial applications
✔ Why stainless steel is the best material choice
Whether you’re an engineer, contractor, or procurement specialist, understanding these components will help you select the best fastening solution for demanding environments.
A U-bolt is a U-shaped fastener with threaded ends, designed to clamp around pipes, tubes, or cylindrical structures. When paired with a bracket (or saddle plate), it provides better load distribution and prevents deformation of the secured object.
Material: 304 or 316 stainless steel (for corrosion resistance)
Thread Type: Fully or partially threaded legs
Bracket Type: Flat or contoured saddle plate for better grip
Surface Finish: Plain, galvanized, or polished
Securing pipes, conduits, and cables
Mounting exhaust systems in automotive applications
Anchoring structural components in construction
An eye bolt is a threaded fastener with a looped head, used for lifting, rigging, and anchoring. It provides a secure attachment point for hooks, ropes, or cables.
Shouldered Eye Bolt – Designed for angular loads (up to 45°).
Non-Shouldered Eye Bolt – Only for straight vertical lifts.
Lag Eye Bolt – Wood screw thread for timber applications.
Material: Stainless steel (304/316) for durability
Load Capacity: Rated for dynamic or static loads
Thread Type: Metric or imperial threading
Overhead lifting in construction
Mooring and rigging in marine environments
Anchoring machinery in industrial settings

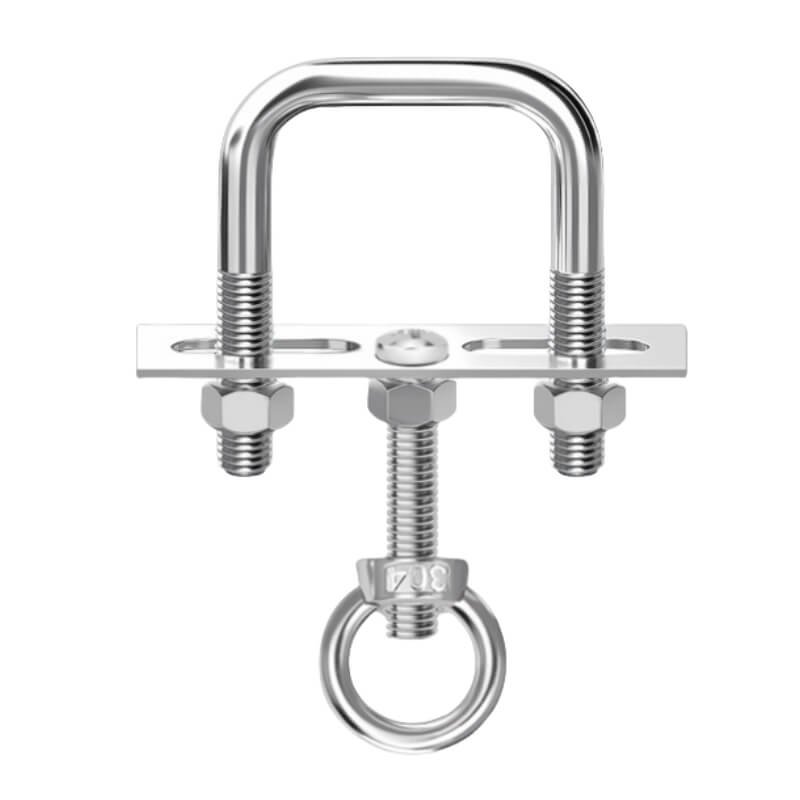

When a U-bolt with a bracket is paired with an eye bolt, it creates a reinforced anchoring and lifting mechanism.
Clamping Phase: The U-bolt wraps around a pipe or beam, while the bracket distributes pressure evenly.
Attachment Phase: The eye bolt is screwed into a pre-tapped hole or welded onto the bracket.
Lifting/Support Phase: Cables, chains, or ropes are attached to the eye bolt for lifting or stabilization.
✅ Enhanced Load Distribution – Prevents pipe crushing or deformation.
✅ Corrosion Resistance – Ideal for marine, chemical, and outdoor use.
✅ Adjustable & Reusable – Can be disassembled and repositioned.
✅ High Safety Factor – Stainless steel resists wear, fatigue, and rust.
Securing pipelines on ships and oil rigs
Mooring and towing applications
Deck rigging for sailboats and cargo vessels
Suspending HVAC ducts and electrical conduits
Anchoring structural beams in bridges
Supporting scaffolding systems
Mounting exhaust systems in trucks and cars
Cargo tie-downs in logistics
Trailer hitch reinforcements
Machinery anchoring in factories
Overhead crane rigging
Pneumatic and hydraulic line fastening
✔ Superior Corrosion Resistance – Withstands saltwater, chemicals, and humidity.
✔ High Tensile Strength – Supports heavy loads without bending.
✔ Longevity – Minimal maintenance required.
✔ Aesthetic Appeal – Polished finish for visible applications.
| Property | 304 Stainless Steel | 316 Stainless Steel |
|---|---|---|
| Corrosion Resistance | Good (general use) | Excellent (marine/chemical) |
| Cost | Lower | Higher |
| Common Applications | Construction, automotive | Offshore, chemical plants |
🔹 Load Requirements – Check weight limits for both U-bolts and eye bolts.
🔹 Environmental Conditions – 316 stainless steel for extreme corrosion resistance.
🔹 Thread Compatibility – Ensure matching thread pitch and diameter.
🔹 Bracket Type – Flat or curved for optimal surface contact.
Use torque wrenches to avoid over-tightening.
Apply thread-locking adhesive in high-vibration settings.
Inspect regularly for wear or deformation.
The combination of stainless steel U-bolts with brackets and eye bolts provides a high-strength, corrosion-resistant fastening solution for lifting, rigging, and structural support. Whether in marine, construction, automotive, or industrial settings, these fasteners ensure safety, durability, and reliability.
Looking for high-quality stainless steel U-bolts and eye bolts? Contact us today for custom solutions tailored to your project needs!
