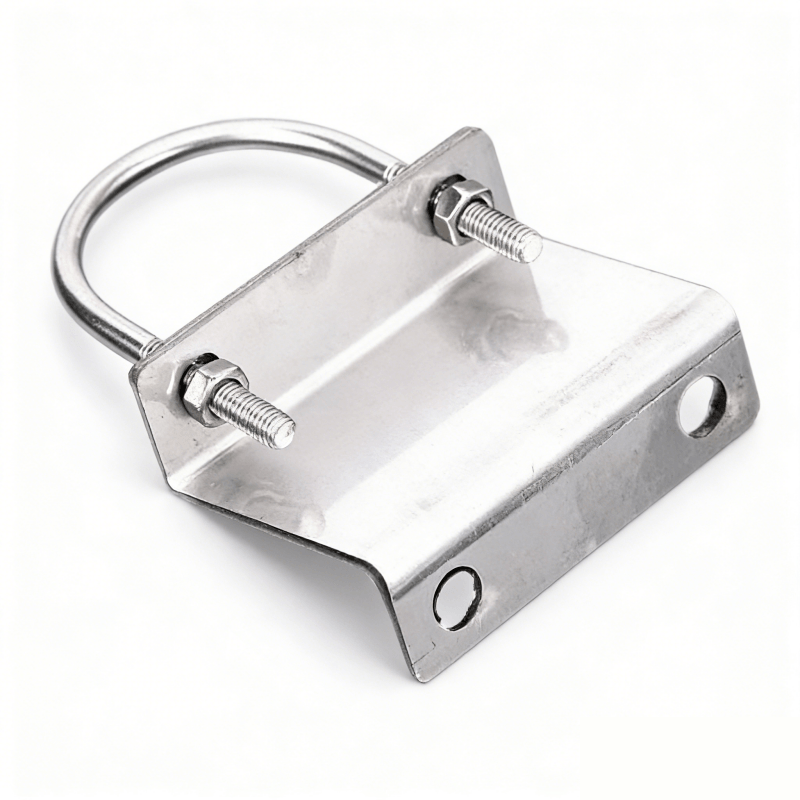

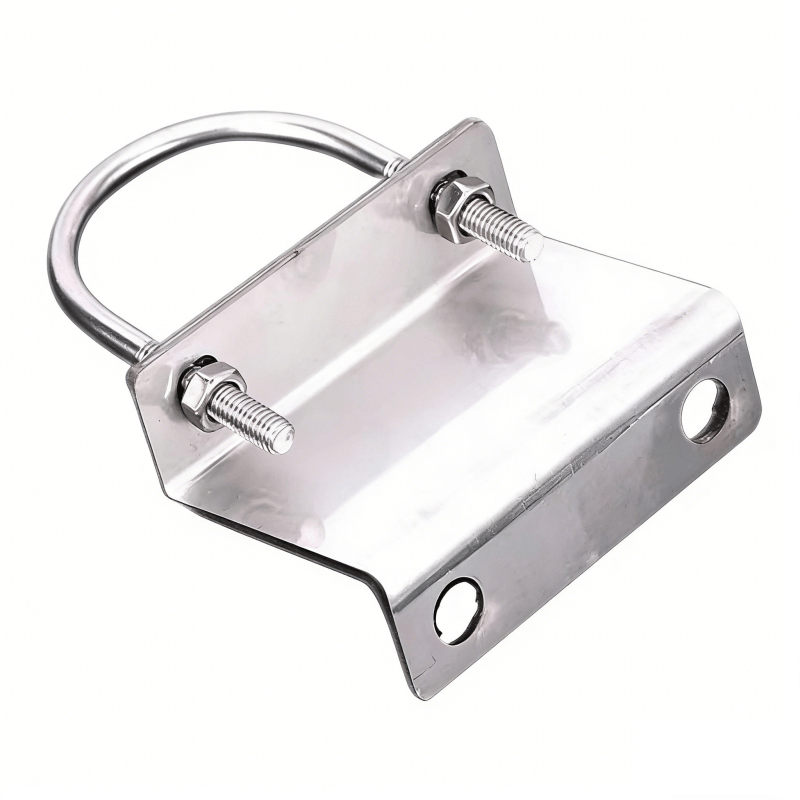

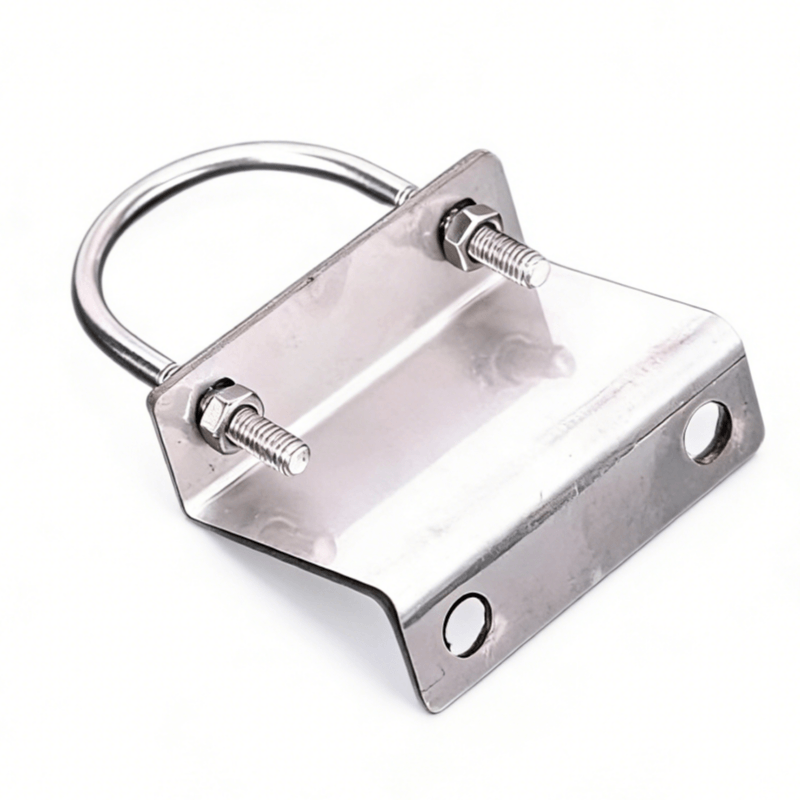

Z-Type Stainless Steel Bracket with U-Bolt Clamp

This Z-type stainless steel bracket with U-bolt is a heavy-duty, corrosion-resistant mounting solution designed to securely fasten pipes, conduits, and equipment to walls or structures. Ideal for industrial, marine, and HVAC applications, it offers adjustable clamping and long-lasting durability in harsh environments.

Rust-proof and easy to install, our stainless steel Z-bracket with U-bolt provides reliable pipe support for construction, food processing, and offshore use. Its offset design ensures flexible mounting, while high-grade materials deliver extended service life.

Heavy-duty Z-type stainless steel U-bolt bracket: corrosion-resistant, adjustable pipe clamp for secure mounting in industrial, marine, and outdoor settings. Pre-drilled holes simplify installation, making it the ideal choice for durable piping systems.

Z-Profile Pipe Support Bracket

1. Superior Corrosion Resistance & Durability

Z-Type Stainless Steel Bracket with U-Bolt Clamp Crafted from 304/316 stainless steel, this Z-bracket with U-bolt offers exceptional resistance to rust, chemicals, and extreme weather. Unlike carbon steel alternatives that degrade quickly in harsh environments, it maintains structural integrity for years, making it ideal for outdoor, marine, and food-processing applications.

2. Versatile Adjustable Design

The Z-shaped bracket provides offset mounting flexibility, while the U-bolt accommodates a wide range of pipe diameters (custom sizes available). This adaptability eliminates the need for multiple specialized brackets, reducing inventory costs and simplifying on-site installations for engineers and maintenance teams.

3. Heavy-Duty Load-Bearing Capacity

Engineered with thickened stainless steel plates and high-tensile U-bolts, this assembly delivers reliable load-bearing performance. It securely anchors pipes, conduits, and equipment to walls, beams, or frames, outperforming thin-gauge competitors that fail under heavy loads or vibration.

The Product Core Information Z-Type Stainless Steel Bracket with U-Bolt Clamp

Parameter	Details
Product Name	Z-Type Stainless Steel Bracket with U-Bolt Clamp
Material	304 Stainless Steel (standard), 316 Stainless Steel (optional for marine/high-corrosion environments)
Finish	Polished/Brushed (anti-corrosion, easy to clean)
Bracket Style	Z-shaped offset mount
U-Bolt Type	Customizable diameter (fits 1/2″ to 4″ pipes, per specification)
Mounting Holes	Pre-drilled for standard fasteners (M6/M8 bolts)
Application Standards	Compliant with industrial piping and structural mounting standards

Applicable Industries & Scenarios

Construction & MEP: Pipe mounting for plumbing, HVAC, and electrical conduits
Marine & Offshore: Deck and hull pipe securing (saltwater-resistant 316 option)
Food & Beverage: Sanitary piping installations (easy-to-clean, non-toxic material)
Industrial Machinery: Equipment and cable management mounting
Agriculture & Irrigation: Outdoor pipe and sprinkler system anchoring

Core Functions & Highlights

Secure Pipe Mounting: Locks pipes/round structures to rigid surfaces with minimal vibration
Offset Installation: Z-bracket design creates clearance for obstacles or insulation
Tool-Free Adjustment: U-bolt nuts allow quick repositioning during maintenance
Cost-Effective: Single solution replaces multiple brackets, reducing labor and material costs

Competitive Differentiators

Material Quality: 304/316 stainless steel vs. mild steel or low-grade alloys
Customization: Tailored U-bolt diameters and bracket dimensions to fit unique project needs
Longevity: 2x longer service life in corrosive environments compared to standard zinc-plated alternatives
Ease of Installation: Pre-drilled holes and included hardware reduce on-site labor time

Use Cases & Installation Guide

Real-World Use Case Example

Imagine you’re a facilities manager at a food processing plant. You need to mount 2-inch stainless steel water pipes to concrete walls, while maintaining 2 inches of clearance for insulation. This Z-bracket with U-bolt is the perfect solution:

The Z-shape creates the required offset without custom fabrication.
The 304 stainless steel resists washdown chemicals and moisture, preventing rust contamination.
The U-bolt securely clamps the pipe, even during high-pressure water flow.

Step-by-Step Installation

Position the Bracket: Align the Z-bracket with your mounting surface (wall, beam, or frame).
Secure the Bracket: Use bolts to fasten the pre-drilled mounting holes to the surface.
Attach the Pipe: Place your pipe/round structure into the U-bolt, then slide the U-bolt through the bracket’s holes.
Tighten Nuts: Hand-tighten the nuts on the U-bolt to secure the pipe, then use a wrench for final torque (avoid over-tightening to prevent pipe damage).
Final Check: Ensure the assembly is stable and aligned before connecting to your system.

Why Choose Our Z-Type Stainless Steel Bracket with U-Bolt?

Whether you’re a contractor, engineer, or maintenance professional, this mounting solution delivers the reliability and versatility you need to complete projects on time and within budget. Backed by rigorous quality testing and customizable options, it’s the smart choice for heavy-duty industrial mounting.

Contact us today to request a custom quote or sample for your specific application.
