In industrial, construction, and plumbing sectors, the need for reliable, durable, and versatile fastening solutions is non-negotiable. Among the most critical components in these fields are U-bolts, particularly those equipped with rubber sleeves.
U-Bolts with Rubber Sleeve—also known as rubber-coated U-bolts, PVC pipe clamps, or hose clamps with protective sleeves—are engineered to meet the highest standards of performance, durability, and safety.
Whether you’re securing fire pipes, PVC pipes, or other industrial hoses, these U-bolts provide the perfect balance of strength, protection, and ease of installation.
In this comprehensive guide, we’ll explore everything you need to know about our U-bolts with rubber sleeves, including their design, materials, applications, benefits,
and why they’re the preferred choice for professionals worldwide.
We’ll also delve into the technical specifications, installation best practices, and how to select the right U-bolt for your specific needs.
What Are U-Bolts with Rubber Sleeves?
U-Bolts with Rubber Sleeve are a specialized type of fastener designed to secure pipes, hoses, and other cylindrical objects to structural supports. The U-shaped bolt is made from high-quality metal (either stainless steel or carbon steel) and features two threaded ends for fastening with nuts and washers.

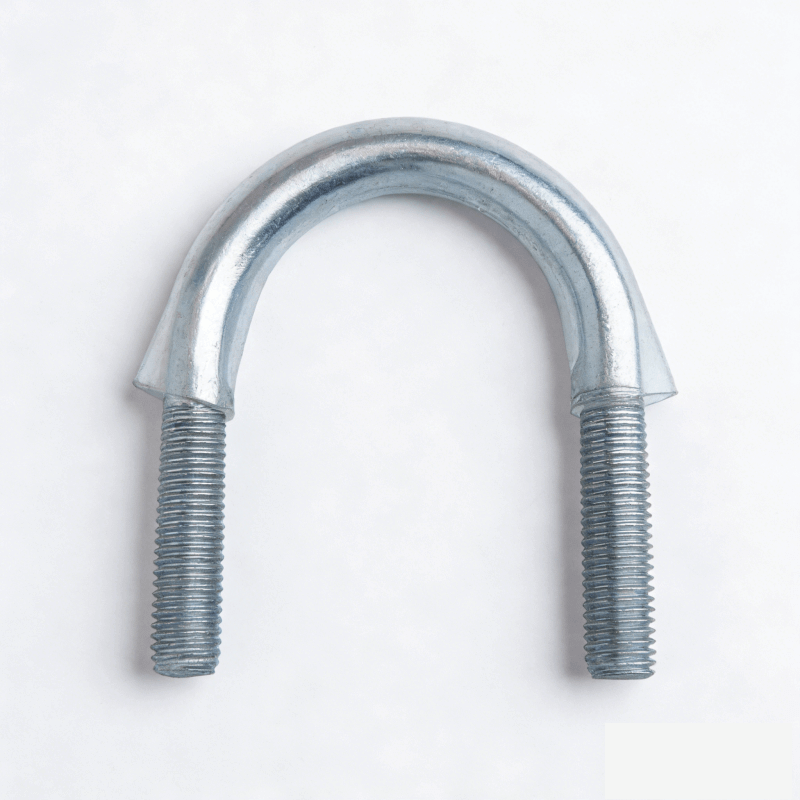

The key differentiator is the white transparent rubber sleeve that covers the curved portion of the U-bolt. This sleeve serves multiple critical functions:
- Protection: The rubber sleeve acts as a buffer between the metal bolt and the pipe/hose, preventing direct metal-to-metal contact. This eliminates the risk of scratches, dents, or corrosion on the pipe surface, which is especially important for sensitive materials like PVC or fire pipes.
- Vibration Damping: In applications where pipes are subject to vibration (e.g., industrial machinery, automotive systems), the rubber sleeve absorbs shocks and reduces noise, preventing damage to both the pipe and the bolt.
- Insulation: The rubber sleeve provides a degree of thermal and electrical insulation, making these U-bolts suitable for use in environments where temperature fluctuations or electrical conductivity are concerns.
Our U-bolts with rubber sleeves are available in three primary sizes: M8, M10, and M12, ensuring compatibility with a wide range of pipe diameters and clamping requirements.
They are also offered in two material options: stainless steel for superior corrosion resistance and carbon steel for cost-effective strength in non-corrosive environments.
Key Materials: Stainless Steel vs. Carbon Steel
U-Bolts with Rubber Sleeve,The choice of material for your U-bolt with rubber sleeve is critical, as it directly impacts the bolt’s durability, corrosion resistance, and suitability for specific applications.
Let’s break down the two primary materials we offer:
1. Stainless Steel U-Bolts
Stainless steel is renowned for its exceptional corrosion resistance, making it the ideal choice for applications in harsh environments, such as marine settings, chemical plants, or outdoor plumbing systems. Our stainless steel U-bolts are typically made from 304 or 316 stainless steel, which offer the following benefits:
- Corrosion Resistance: Stainless steel resists rust, oxidation, and chemical corrosion, ensuring long-term performance even in saltwater, acidic, or alkaline environments.
- Strength and Durability: Despite its corrosion resistance, stainless steel maintains high tensile strength, making it suitable for heavy-duty clamping applications.
- Hygiene: Stainless steel is non-porous and easy to clean, making it ideal for use in food processing, pharmaceutical, or medical industries where hygiene is critical.
Best Applications for Stainless Steel U-Bolts:
- Marine and coastal construction
- Chemical and petrochemical plants
- Food processing facilities
- Outdoor plumbing and fire protection systems
- Any environment where corrosion is a significant concern
2. Carbon Steel U-Bolts
Carbon steel is a cost-effective alternative to stainless steel, offering excellent strength and durability in non-corrosive environments.
Our carbon steel U-bolts are hot-dip galvanized or zinc-plated to provide a basic level of corrosion resistance, making them suitable for indoor or dry applications. Key benefits include:
- Cost-Effectiveness: Carbon steel is more affordable than stainless steel, making it a popular choice for large-scale projects where budget is a primary consideration.
- High Tensile Strength: Carbon steel U-bolts can withstand heavy loads and high torque, making them ideal for structural clamping applications.
- Versatility: With proper coating (e.g., galvanization), carbon steel U-bolts can be used in a variety of indoor and mild outdoor environments.
Best Applications for Carbon Steel U-Bolts:
- Indoor plumbing and HVAC systems
- Structural support for pipes in dry environments
- Automotive and machinery applications
- Budget-conscious projects where corrosion resistance is not the primary requirement
Technical Specifications: Sizes and Dimensions
U-Bolts with Rubber Sleeve are available in three standard sizes: M8, M10, and M12. Each size is designed to accommodate specific pipe diameters and clamping loads.
Below is a breakdown of the key specifications for each size:
| Size | Thread Diameter | Typical Pipe Diameter Range | Load Capacity | Material Options |
|---|---|---|---|---|
| M8 | 8 mm | 20 mm – 50 mm | Up to 500 kg | Stainless Steel, Carbon Steel |
| M10 | 10 mm | 40 mm – 80 mm | Up to 800 kg | Stainless Steel, Carbon Steel |
| M12 | 12 mm | 60 mm – 120 mm | Up to 1,200 kg | Stainless Steel, Carbon Steel |
Note: Custom sizes and dimensions are available upon request for specialized applications.
The white transparent rubber sleeve is available in standard thicknesses (typically 2 mm – 5 mm) to provide optimal protection and vibration damping.
The sleeve is securely bonded to the U-bolt, ensuring it remains in place even under heavy loads or extreme conditions.
Applications: Where U-Bolts with Rubber Sleeves Excel
Our U-bolts with rubber sleeves are incredibly versatile, finding use in a wide range of industries and applications. Some of the most common use cases include:
1. Fire Protection Systems (Fire Pipe Clamps)
In fire protection systems, the integrity of pipes is critical to ensuring the safe and effective delivery of water or fire suppression agents.
Our U-bolts with rubber sleeves are widely used as fire pipe clamps to secure fire sprinkler lines, standpipes, and other fire protection pipes to structural supports.
The rubber sleeve protects the pipe from damage caused by the metal bolt, while the high-strength construction ensures the clamp remains secure even in the event of a fire or seismic activity.
2. Plumbing and PVC Pipe Installation
PVC pipes are a staple in modern plumbing systems, used for everything from water supply lines to drainage systems.
Our U-bolts with rubber sleeves are ideal for securing PVC pipes, as the rubber sleeve prevents the metal bolt from scratching or cracking the plastic pipe.
This is especially important in residential and commercial plumbing, where PVC pipes are often used in tight spaces or subject to vibration.
3. Industrial Hose and Pipe Clamping
In industrial settings, hoses and pipes are used to transport a wide range of materials, from water and chemicals to gases and liquids.
Our U-bolts with rubber sleeves provide a secure and reliable way to clamp these hoses and pipes to machinery, structural supports, or other components.
The rubber sleeve protects the hose from abrasion and damage, while the high-strength metal construction ensures the clamp can withstand the pressures and vibrations of industrial operations.
4. Automotive and Machinery Applications
U-bolts with rubber sleeves are also used in automotive and machinery applications, where they secure exhaust pipes, fuel lines, and other components to the vehicle or machine frame.
The rubber sleeve reduces noise and vibration, improving the overall performance and comfort of the vehicle or machinery.
5. Construction and Structural Support
In construction, U-bolts with rubber sleeves are used to secure pipes, conduits, and other components to structural supports, such as beams, columns, and walls.
The rubber sleeve protects the pipe from damage caused by the metal bolt, while the high-strength construction ensures the clamp remains secure even under heavy loads or seismic activity.
Benefits of Choosing Our U-Bolts with Rubber Sleeves
When you choose our U-bolts with rubber sleeves, you’re investing in a product that offers unmatched performance, durability, and value. Here are just a few of the key benefits:
1. Superior Protection for Pipes and Hoses
The white transparent rubber sleeve provides a protective barrier between the metal bolt and the pipe/hose, eliminating the risk of scratches, dents, or corrosion.
This is especially important for sensitive materials like PVC or fire pipes, where even minor damage can compromise the integrity of the system.
2. Enhanced Durability and Corrosion Resistance
Our U-bolts are made from high-quality stainless steel or carbon steel, ensuring exceptional durability and corrosion resistance.
Stainless steel U-bolts are ideal for harsh environments, while carbon steel U-bolts offer a cost-effective solution for non-corrosive applications.
3. Vibration Damping and Noise Reduction
The rubber sleeve absorbs shocks and reduces vibration, making our U-bolts ideal for use in applications where pipes are subject to movement or noise.
This not only protects the pipe and bolt but also improves the overall safety and comfort of the environment.
4. Easy Installation and Maintenance
Our U-bolts with rubber sleeves are designed for easy installation,
with threaded ends that allow for quick and secure fastening with nuts and washers.
The rubber sleeve is securely bonded to the bolt, eliminating the need for additional maintenance or replacement.
5. Versatility and Compatibility
With three standard sizes (M8, M10, M12) and two material options (stainless steel, carbon steel),
our U-bolts with rubber sleeves are compatible with a wide range of pipe diameters and clamping requirements. Custom sizes and dimensions are also available upon request for specialized applications.
Installation Best Practices for U-Bolts with Rubber Sleeves
Proper installation is critical to ensuring the performance and durability of your U-bolts with rubber sleeves. Follow these best practices to ensure a secure and long-lasting installation:
- Select the Right Size: Choose a U-bolt size that matches the diameter of your pipe/hose and the required load capacity. Using a U-bolt that is too small can result in insufficient clamping force, while a U-bolt that is too large can cause unnecessary stress on the pipe/hose.
- Inspect the U-Bolt and Rubber Sleeve: Before installation, inspect the U-bolt and rubber sleeve for any signs of damage, such as cracks, tears, or corrosion. Replace any damaged components before proceeding.
- Position the U-Bolt Correctly: Place the U-bolt around the pipe/hose, ensuring the rubber sleeve is in direct contact with the pipe surface. The threaded ends should extend through the structural support, with the nuts and washers positioned on the opposite side.
- Tighten the Nuts Evenly: Use a torque wrench to tighten the nuts evenly, applying the recommended torque for the size and material of the U-bolt. Over-tightening can cause the pipe/hose to crack or the U-bolt to fail, while under-tightening can result in insufficient clamping force.
- Check for Proper Alignment: After installation, check the alignment of the pipe/hose and U-bolt to ensure they are properly positioned. The pipe/hose should be centered in the U-bolt, with the rubber sleeve providing even protection around the circumference.
- Perform Regular Inspections: Regularly inspect the U-bolts and rubber sleeves for signs of wear, corrosion, or damage. Replace any components that show signs of deterioration to ensure the continued performance and safety of the system.
How to Select the Right U-Bolt with Rubber Sleeve for Your Application
Selecting the right U-bolt with rubber sleeve for your application requires careful consideration of several factors, including:
- Pipe/Hose Diameter: The U-bolt must be sized to fit the diameter of your pipe/hose. Measure the outside diameter of the pipe/hose and select a U-bolt size that is compatible.
- Load Capacity: Consider the weight and pressure of the pipe/hose and the structural support.
- Choose a U-bolt with a load capacity that exceeds the expected load to ensure safety and durability.
- Environment: Consider the environment in which the U-bolt will be used. If the application is in a harsh environment (e.g., marine, chemical, or outdoor), choose a stainless steel U-bolt for superior corrosion resistance. If the application is in a dry, indoor environment, a carbon steel U-bolt may be sufficient.
- Material Compatibility: Ensure the U-bolt material is compatible with the pipe/hose material. For example, stainless steel U-bolts are ideal for use with PVC pipes, as they do not react with the plastic material.
- Regulatory Requirements: Some industries (e.g., fire protection, food processing) have specific regulatory requirements for fasteners. Ensure your U-bolt meets all relevant standards and certifications (e.g., UL, FM, NSF) for your application.
Why Choose Our U-Bolts with Rubber Sleeves?
we take pride in manufacturing high-quality U-bolts with rubber sleeves that meet the highest standards of performance, durability, and safety. Here’s why our customers trust us:
- Premium Materials: We use only the highest-quality stainless steel and carbon steel, ensuring our U-bolts are durable, corrosion-resistant, and long-lasting.
- Precision Engineering: Our U-bolts are precision-engineered to meet strict dimensional and performance standards, ensuring a perfect fit and reliable performance.
- Customization Options: We offer custom sizes, dimensions, and materials to meet the unique needs of our customers.
- Whether you need a specialized U-bolt for a specific application or a large quantity for a major project, we can help.
- Competitive Pricing: We offer competitive pricing on all our products, without compromising on quality.
- Our U-bolts with rubber sleeves provide exceptional value for money, making them the preferred choice for professionals worldwide.
- Exceptional Customer Service:
- Our team of experts is dedicated to providing exceptional customer service,
- from product selection and customization to installation support and after-sales service. We’re here to help you find the right U-bolt for your application and ensure a successful project.
Conclusion
U-Bolts with Rubber Sleeve are an essential component in a wide range of industries,
from plumbing and fire protection to industrial machinery and construction.
Our U-bolts with white transparent rubber sleeves—also known as rubber-coated U-bolts,
PVC pipe clamps, or hose clamps with protective sleeves—are designed to provide superior protection, durability,
and performance, making them the ideal choice for professionals worldwide.
Whether you’re securing fire pipes, PVC pipes, or industrial hoses,
our U-bolts with rubber sleeves offer the perfect balance of strength, protection, and ease of installation.
With three standard sizes (M8, M10, M12) and two material options (stainless steel, carbon steel),
we have a U-bolt to meet the unique needs of your application.
If you’re looking for a reliable, durable, and cost-effective U-bolt with rubber sleeve,
Contact us today to learn more about U-Bolts with Rubber Sleeve and how we can help you find the right solution for your project.
